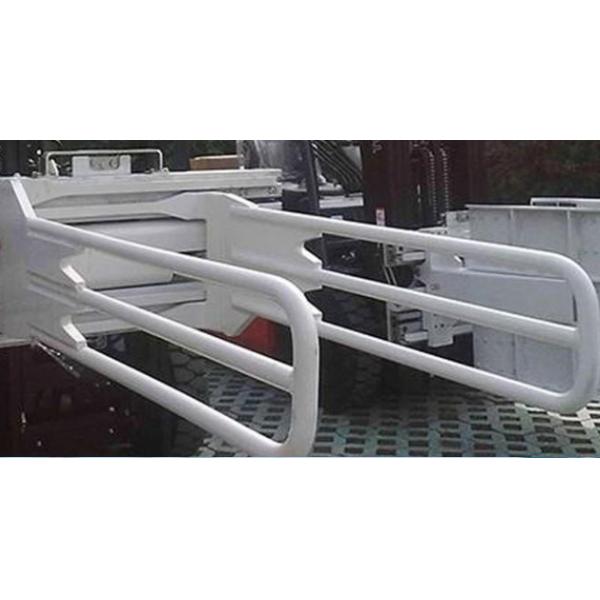

Custom forklift clamp attachment, forklift foam rubber clamp
Functions & Applications
Foam clips can carry and stack any type of cotton products
efficiently, safely, including rubber, chemicals and chemical
fibers.
High strength T-shaped steel and aluminum alloy guide groove
structure, durable, thin clamping arm design, easy to wedge and
stack articles.
Options
* Custom opening ranges
* Custom pad size
* Various mounting classes available
* Load backrests
Parameter
Capacity@
Load Center
(Kg@mm) | Model No. | Mounting Class | Opening Range
A (mm) | Arm Height
H (mm) | Arm
Length
L (mm) | Frame
Width
B (mm) | Arm
Thickness
C (mm) | Overall
Height
(mm) | Vertical
Center of
Gravity
CGV(mm) | Weight
(kg) | Effective
Thickness
ET(mm) | Horizontal
Center of
Gravity
CGH(mm) |
| 2200@500 | FMS30D-007B | III | 790-2600 | 600 | 2500 | 1600 | 60 | 730 | 250 | 800 | 200 | 280 |
| 2200@500 | FMS30D-008B | III | 790-2600 | 400 | 1800 | 1600 | 60 | 730 | 250 | 680 | 200 | 300 |
Remark:
1. Obtain the actual capacity of forklift and accessories from the
forklift manufacturer. remarks:
2. Two sets of additional oil circuits are required on the
forklift.
3. The opening range is the space between the tips of the two arms.
4. The arm thickness "C" is the actual required operating space.
Other size available on request.
Installation & Option
Hydraulic Flow & Pressure
| Model | Min.
Hydraulic
Flow(L/min) | Rec.
Hydraulic
Flow(L/min) | Max.
Hydraulic
Flow(L/min) | Min.
Hydraulic
Pressure(Bar) | Max.
Hydraulic
Pressure(Bar) |
| FMS20D | 15 | 25 | 25 | 35 | 160 |
| FMS30D | 15 | 40 | 40 | 35 | 160 |
Options:
* Left and right clip arm independent movement type.
Applicable Industries
Hotels, clothing stores, building materials stores, manufacturing
plants, construction projects
Can be customized according to size
